AXYS Support and Download Center

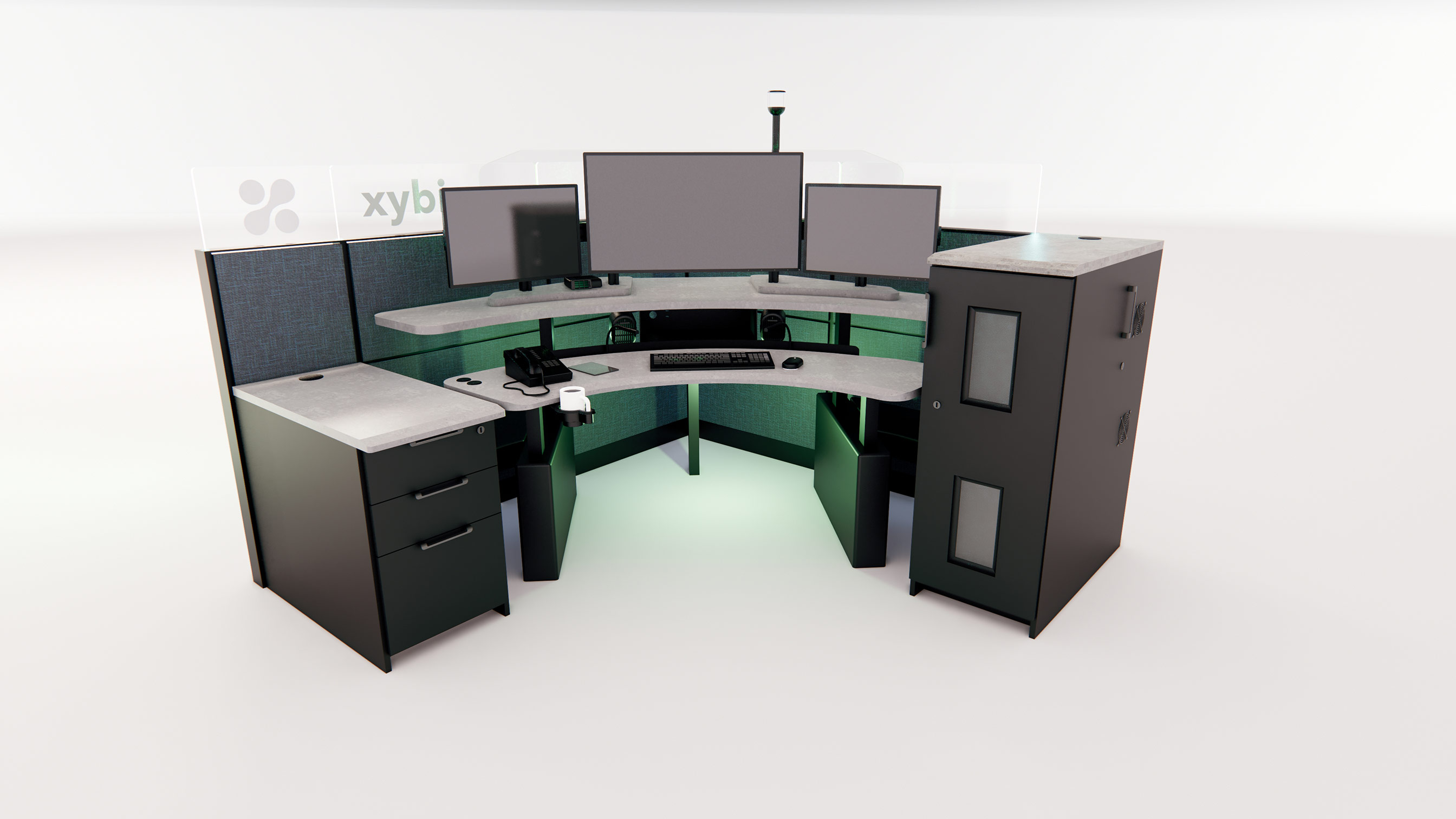

Xybix Desk Featuring AXYS

Axys Software Downloads:

Windows 10/11 Axys Software

Download AXYS Software for Windows 10 or 11 (Installer)
Version 1.5.9, Released on 4/18/24

Clicking the above link will download the Axys software installer program to your Windows PC. To install the Axys software on your PC, simply run the program after the download completes. If you are unable to install this type of file on your PC, the following document can be of assistance.

If you have difficulty installing the Axys software for Windows, you may also need to install the Axys for Windows dependencies first. Most users will have these pre-installed, but they are available here if needed.

Need an older version of the AXYS software? We have version 1.4.3 available as well.

Apple iOS Axys Software

AXYS App for iOS Devices in the Apple Store


The iOS Axys software can be found in the Apple App Store on your iPhone or iPad device

Android Axys Software

AXYS App for Android Devices in the Google Play Store


The Android Axys software can be found in the Google Play Store on your Android (Samsung, Motorola, OnePlus, Pixel, etc.) device.

Instructions for setting up an Android tablet as an always-on Axys controller.


Axys Support Documents:

Download AXYS Quick Start Guide


Status Indicator Light Connection Diagram for AXYS (click to view a larger version)

AXYS Status Indicator Light Troubleshooting (PDF Download)


Axys FAQs:

  • How is the Axys system connected to my desk and where do I download the software?
    The Axys control box is hardwired under the worksurface. Axys software drives that control box either from a USB wire from a computer or via Bluetooth 5.0 from a dedicated tablet (iOS or Android). iOS and Android devices can download the Axys software from their respective app stores. Windows users can download the software via the link at the top of this page.

    See the diagram below for details on how each device works with Axys:

                                      [Click to enlarge]


  • How much does it cost?
    This depends on how many features are added to the Axys order. The base software that operates your console functions begins around $1,000. A fully loaded system, including cooling fan, heaters, task lights, footwell lighting, down bias lighting, monitor arc lighting, and a status light, will run about $2,400. Additional features like panel system acrylic lighting and custom etched logos could cost more. The average customer spends about $2,300 per workstation.

  • How do I add status indicator lights to Axys?
    Axys gives you two options for status indicator lights. You can use the Axys priority single-tier light with a multitude of colors, or connect a multi-tier banner status indicator light. The help or status feature turns on the dedicated light on the banner light. That help or status feature can also be programmed to be the highest priority light setting to override other light settings such as active phone or active radio lights.

  • Does the tablet or iPad come included with Axys?
    No. Xybix can purchase and resell a tablet if required. Customers may also acquire their own devices.

  • Does Axys require a subscription?

  • Does this system utilize the internet or breach any firewall?
    The Axys software does not communicate beyond the desk to which it is attached or assigned. The software does not utilize the internet to control the desk and there is no firewall conflict.

    What do I do if I need additional troubleshooting help?
    Contact Xybix’s Customer Service department at or 1-800-788-2810

  • We cannot use a computer (Windows device); how can we use Axys?
    You may purchase a dedicated tablet (using iOS or Android) and control Axys from that device.

  • Do you have options if we do not want Axys on our system?
    Axys is the only system available to manage all the innovations in comfort, ambient lighting, and status lights. Xybix can provide manual switches for limited lighting solutions if requested.

  • What are the wellness benefits of using Axys?
    The tracking feature in Axys allows each user to log their standing/sitting behavior and log their caloric output. Individual profiles allow for personalization and more detailed caloric output information. Wellness programs can utilize Axys to boost their outcomes for health.


Setting up New User Account and Creating Scenes




Installing the AXYS Software on a Windows PC



Installing the AXYS Software on an iOS Device



Resetting your AXYS System Box Step-By-Step
