Grounding for Xybix Desks
![Grounding Photo](https://www.xybix.com/hs-fs/hubfs/Website/2019/Grounding%20Rendering-1.jpeg?width=2301&height=2301&name=Grounding%20Rendering-1.jpeg)
Xybix’s standard equipment does not require any specific grounding. We recommend that you contact your radio supplier for grounding specifics.
However, we do offer optional R-56 grounding for your Xybix workstations to meet any grounding standards.

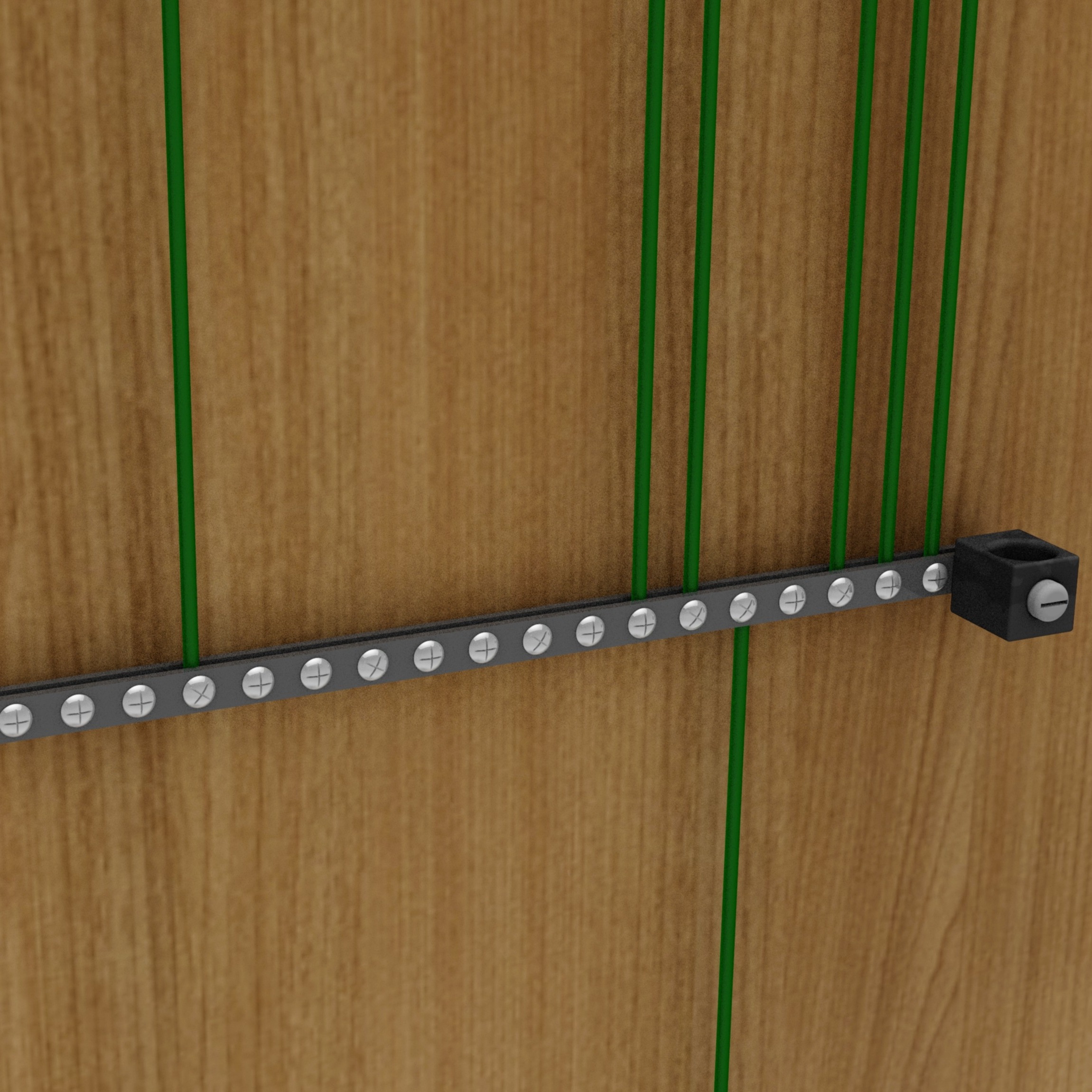

Xybix can supply workstation grounding which consists of multiple grounding bars with #6 wires up to thirteen feet and #10 wires up to three feet from ground bars. Xybix grounds all metal items on work station including; Rollervision, Power bars, metal cable management and frames.
![Grounding Bar Photo](https://www.xybix.com/hs-fs/hubfs/Grounding-Bar-2.jpg?width=2000&height=1500&name=Grounding-Bar-2.jpg)
CPU / TechTower Ground Bar is the main ground bar on the workstation and will accommodate up to a #2 AWG wire. This ground bar is meant to be connected to the house ground that comes from the building.
![Grounding Bar Photo](https://www.xybix.com/hs-fs/hubfs/Grounding-Bar-1.jpg?width=2000&height=1500&name=Grounding-Bar-1.jpg)
Panel frames are bonded with lay-in-lug and a #6 AWG that is connected to a grounding bar. The table base is bonded with a #6 AWG wire to each side of the table and connected to a grounding bar.
• 16 mm2 csa (#6 AWG) insulated copper conductor for lengths not exceeding 3.9 m (13 ft.).
• 6 mm2 csa (#10 AWG) insulated copper conductor for lengths not exceeding 3 m (10 ft.).
• If a longer length is required, the equipment grounding conductor should be sized according to
Table 5-5 on page 5-29 of the Motorola R56 Manual.
![Lay-In Lug 1 2022](https://www.xybix.com/hs-fs/hubfs/Lay-In%20Lug%201%202022.jpg?width=315&height=482&name=Lay-In%20Lug%201%202022.jpg)
Have any additional questions about Xybix grounding options? Contact us today!
